KEY LED Aquarium Lightning System prt.II

 from part I

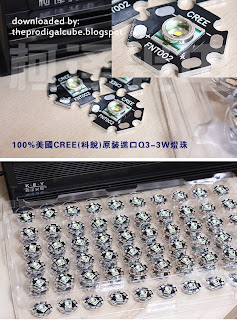

Ko translated all use a single monolithic optoelectronic chip 3W lamp beads, each maintained at 6 cm intervals stars above and the single set of heat dissipation, cooling completely solved the problem.   Ko translation photovoltaic R & D thermal cooling system consists of active and passive cooling (cooling fan), with active cooling system consists of the completion of the overall aluminum radiator (if not open the cooling fan can also be completely does not affect the LED life); passive cooling system composed of groups of quiet fans in high temperature areas to LED lights to provide adequate cooling beads; the other: Ke translation photoelectric first side tooth cooling technology (patent pending), and completely solved the high-power LED thermal problems;



About Color Temperature:
Aquarium Lamps require specific color temperature, both for visual light bluish (color temperature is high), or yellowish (color temperature is low), high-power white LED color temperature can be ordered from 3000K to 15000K.


◆ Efficient import of chips, to ensure the luminous efficiency
◆ low energy consumption, more energy-efficient
◆ no radiation heat, does not affect the water temperature
◆ Water
Single-stars 3W,
luminous blue light, dream aquarium
external power supply, low voltage input
thin the main light, install a wide range of
  flexible control of light effect




Model Size: K4012- EX………40CM*15CM*4CMK4012-EX... ... ... ... ... ... ... 40CM * 15CM * 4CM (micro-cylinder use)
K5518-EX………55CM*15CM*4CM K5518-EX .. ... ... ... ... ... ... 55CM * 15CM * 4CM
K5524-UL………55CM*25CM*4CM K5524-UL... ... ... ... ... ... ... 55CM * 25CM * 4CM
K7224-EX………72CM*15CM*4CM K7224-EX... ... ... ... ... ... ... 72CM * 15CM * 4CM
K7236-EX………72CM*25CM*4CM K7236-EX .. ... ... ... ... ... ... 72CM * 25CM * 4CM
K5518- D………55CM*15CM*4CM K5518-D... ... ... ... ... ... ... 55CM * 15CM * 4CM (freshwater only)
K7224- D………72CM*15CM*4CM K7224-D ... ... ... ... ... ... ... ... 72CM * 15CM * 4CM (freshwater only)




K4012-EX
Specifications:
Input Voltage:110v US / 220v Europe Input Voltage: 110v US / 220v Europe
Power Output:36 Watt Power Output: 36 Watt
LED Configuration:12 x 3 Watt LED LED Configuration: 12 x 3 Watt LED
LED High-Power Chips:USA LED High-Power Chips: USA
Nighttime:Moonlight(Blue) Nighttime: Moonlight (Blue)
Lumen:1800 Lm Lumen: 1800 Lm
Lifespan:50,000 Hrs Lifespan: 50,000 Hrs
WaveLenght:White=12K, Blue=465nm WaveLenght: White = 12K, Blue = 465nm
Dimension 40x15x4cm Dimension 40x15x4cm

K4012-EX aquarium specially designed for micro-, length width of (CM): 40 * 15 * 4; with the bracket can be installed on the top of the aquarium.  3W lamp fixture includes beads 12, in which two 3W blue lights, with a total power of 36W, with 80W halogen brightness comparable; the middle of a small-power blue light of a group, can be used as color temperature adjustment, after the light to open even more biased blue, the night watch as a coral fluorescent lights.  The main light, there are 2 sets of cooling fans and 40 cm aluminum radiator, if not open the fan, specially designed aluminum heat sink to provide enough heat lamp bead area. Nano-reflective article, 60 ° lens, high-conductivity are hot aluminum plate, external power supply box, aviation connector connected to a group of the main light, luminous lights, fans, separate control.





K5518-EX
Specifications:
Input Voltage:110v US / 220v Europe Input Voltage: 110v US / 220v Europe
Power Output:54 Watt Power Output: 54 Watt
LED Configuration:18 x 3 Watt LED LED Configuration: 18 x 3 Watt LED
LED High-Power Chips:USA LED High-Power Chips: USA
Nighttime:Moonlight(Blue) Nighttime: Moonlight (Blue)
Lumen:2700 Lm Lumen: 2700 Lm
Lifespan:50,000 Hrs Lifespan: 50,000 Hrs
WaveLenght:White=12K, Blue=465nm WaveLenght: White = 12K, Blue = 465nm
Dimension 55x15x4cm Dimension 55x15x4cm

K5518-EX aquarium for small-to long-specially designed for length width of (CM): 55 * 15 * 4; with the bracket can be installed on the top of the aquarium.  3W lamp fixture includes beads 18 (9 a group, two separate control group), of which 6 3W blue lights, with a total power of 54W, the brightness can be comparable with the 120W halogen; the middle of a small-power blue light of a group, can be used as color temperature adjustment, opened up a more bluish light at night can be used as ornamental coral fluorescent lights.   The main light, there are 2 sets of cooling fans and 55 cm in aluminum radiator, if not open the fan, specially designed aluminum heat sink to provide enough heat lamp bead area.   Nano-reflective article, 60 ° lens, high-conductivity are hot aluminum plate, external power supply box, aviation connector connection, two groups from the main light, luminous lights, fans, separate control.











K5524-EX
Specifications: Specifications:
Input Voltage:110v US / 220v Europe Input Voltage: 110v US / 220v Europe
Power Output:72 Watt Power Output: 72 Watt
LED Configuration:24 x 3 Watt LED LED Configuration: 24 x 3 Watt LED
LED High-Power Chips:USA LED High-Power Chips: USA
Nighttime:Moonlight(Blue) Nighttime: Moonlight (Blue)
Lumen:3600 Lm Lumen: 3600 Lm
Lifespan:50,000 Hrs Lifespan: 50,000 Hrs
WaveLenght:White=12K, Blue=465nm WaveLenght: White = 12K, Blue = 465nm
Dimension 55x25x4cm Dimension 55x25x4cm




 K5524-Ultra specially designed for small aquariums, length width of (CM): 55 * 25 * 4; with the bracket can be installed on the top of the aquarium.  3W lamp fixture includes beads 24 (12 a group, two separate control group), of which 8 3W blue lights, with a total power of 72W, the brightness can be comparable with the 160W halogen; the middle of a small-power blue light of two groups, can be used as color temperature adjustment, opened up a more bluish light at night can be used as ornamental coral fluorescent lights.   The main light, there are 4 sets of cooling fans and 55 cm in aluminum radiator, if not open the fan, specially designed aluminum heat sink to provide enough heat lamp bead area.

Nano-reflective article, 60 ° lens, high-conductivity are hot aluminum plate, external power supply box, aviation connector connection, two groups from the main light, luminous lights, fans, separate control.




K7224-EX
Specifications: Specifications:
Input Voltage:110v US / 220v Europe Input Voltage: 110v US / 220v Europe
Power Output:72 Watt Power Output: 72 Watt
LED Configuration:24 x 3 Watt LED LED Configuration: 24 x 3 Watt LED
LED High-Power Chips:USA LED High-Power Chips: USA
Nighttime:Moonlight(Blue) Nighttime: Moonlight (Blue)
Lumen:3600 Lm Lumen: 3600 Lm
Lifespan:50,000 Hrs Lifespan: 50,000 Hrs
WaveLenght:White=12K, Blue=465nm WaveLenght: White = 12K, Blue = 465nm
Dimension 72x15x4cm Dimension 72x15x4cm


K7224-EX for the medium-and long-type aquarium specially designed length width of (CM): 72 * 15 * 4; with the bracket can be installed on the top of the aquarium.  3W lamp fixture includes beads 24 (12 a group, two separate control group), of which 8 3W blue lights, with a total power of 72W, the brightness can be comparable with the 160W halogen; the middle of a small-power blue light of a group, can be used as color temperature adjustment, opened up a more bluish light at night can be used as ornamental coral fluorescent lights.   The main light, there are 4 sets of cooling fans and 72 cm in aluminum radiator, if not open the fan, specially designed aluminum heat sink to provide enough heat lamp bead area.
Nano-reflective article, 60 ° lens, high-conductivity are hot aluminum plate, external power supply box, aviation connector connection, two groups from the main light, luminous lights, fans, separate control.




K7236-EX
Specifications: Specifications:
Input Voltage:110v US / 220v Europe Input Voltage: 110v US / 220v Europe
Power Output:108 Watt Power Output: 108 Watt
LED Configuration:36 x 3 Watt LED LED Configuration: 36 x 3 Watt LED
LED High-Power Chips:USA LED High-Power Chips: USA
Nighttime:Moonlight(Blue) Nighttime: Moonlight (Blue)
Lumen:5400 Lm Lumen: 5400 Lm
Lifespan:50,000 Hrs Lifespan: 50,000 Hrs
WaveLenght:White=12K, Blue=465nm WaveLenght: White = 12K, Blue = 465nm
Dimension 72x25x4cm Dimension 72x25x4cm

K7236-Ultra specially designed for medium-sized aquarium, length width of (CM): 72 * 25 * 4; with the bracket can be installed on the top of the aquarium.   3W lamp fixture includes beads 36 (12 a group, three separate control group), of which 12 3W blue lights, with a total power of 108W, with 250W halogen light comparable; the middle of a small-power blue light of two groups, can be used as color temperature adjustment, opened up a more bluish light at night can be used as ornamental coral fluorescent lights.  The main light, there are 4 sets of cooling fans and 72 cm in aluminum radiator, if not open the fan, specially designed aluminum heat sink to provide enough heat lamp bead area.
Nano-reflective article, 60 ° lens, high-conductivity are hot aluminum plate, external power supply box, aviation connector connection, three groups from the main light, luminous lights, fans, separate control.
